Rapid depolyable Prefab shelter Folds-out system

Low cost, sustainable, rapidly deployable, long term and dignified house which is shipped in package unfolded and assembled by the end users. The basic building components are galvanised tube steel for the base, structural insulated metal panel for walls, floor and roof and can be customised with conventional interior and exterior finishes.

Ideal for the Family living,Reseller,Builder. Uses include:

  • Family housing

  • Simple office

  • Bunkhouse

  • Workshop

  • Mobile accommodation centre

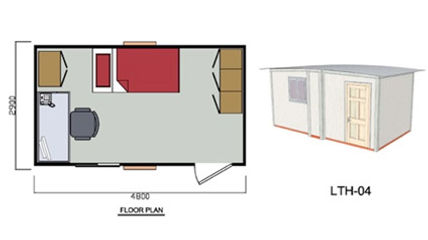

Floor plans

Folds out within 10minutes

Specification
  • In quick installation according to detailed instruction

  • Green (Environmental Friendly)

  • Easy to transport and cost saving in logistic

  • With long service life time

  • Cost effective and affordable

  • Spacious and easy to assemble

  • EPS Sandwich Panel Wall House series of LTH :2900x4800mm

  • Other type series of LT: 5765x5050mm

  • DOOR: 2pcs

  • WINDOWS:2pcs

  • SOCKET:4

  • SWITCH:1pc

  • LIGHT:2pcs

  • TOILET:1set

  • WASHBASIN:1set

  • SHOWER:1set

  • PARTITION WALL:2.7m

Steel Framework

Material:  Main frames are made from galvanized steel and RHS.  All the frames are well welded in the factory.

Surface working: All frames are painted and treated with Anti-rust paint

Facade Wall & Roof

Wall panels are made of 50mm with 10kg density EPS foam sandwich panel+50mm PU Sandwich panel. Most panels are fixed in the factory and hinged with roofing (50mm EPS sandwich panel  + colorbond sheet). The thickness of steel for the panel is 0.35mm outside and 0.35mm for inside.

Floor Composition:

External wainscot: 0.3mm steel sheet.

Insulation: R3.5 glasswool

Underneath: 15mm Plywood board for dry area, 15mm CFC sheet for wet area

Flooring: PVC floor covering in a thickness of 1.5mm.

K External wall ≤ 0,33 W/m²°C

K Roof and floor passage ≤  0,24 W/m²°C

We're a leading company in the field of prefab house for over ten years, we now have mature technology to meet customers requirements.
